Why Accuracy Checking Matters
Dosing pumps are sold on accuracy claims, but in the field, accuracy drifts. Stroke length changes, valves wear, diaphragms stiffen, and the pump quietly delivers 15% less than your process assumes. For a corrosion inhibitor or biocide dose, that drift means an under-protected system.
A calibration pot (also called a calibration column or calibration cylinder) is the standard field tool for checking real output. It takes about ten minutes, costs very little, and catches drift before it becomes a process failure.
What a Calibration Pot Is
A calibration pot is a transparent graduated cylinder fitted between the chemical tank and the pump suction line. It has two modes:
- Normal operation: a ball valve opens the pot to the tank, and the pump draws chemical straight from the tank.
- Calibration mode: the valve closes the pot off from the tank, and the pump draws only from the pot. You watch the liquid level drop and time it.
The pot is usually made of acrylic or PVC, with graduations in milliliters. Sizes run from 0.5 L to 5 L, and the right size depends on your pump's output per minute.

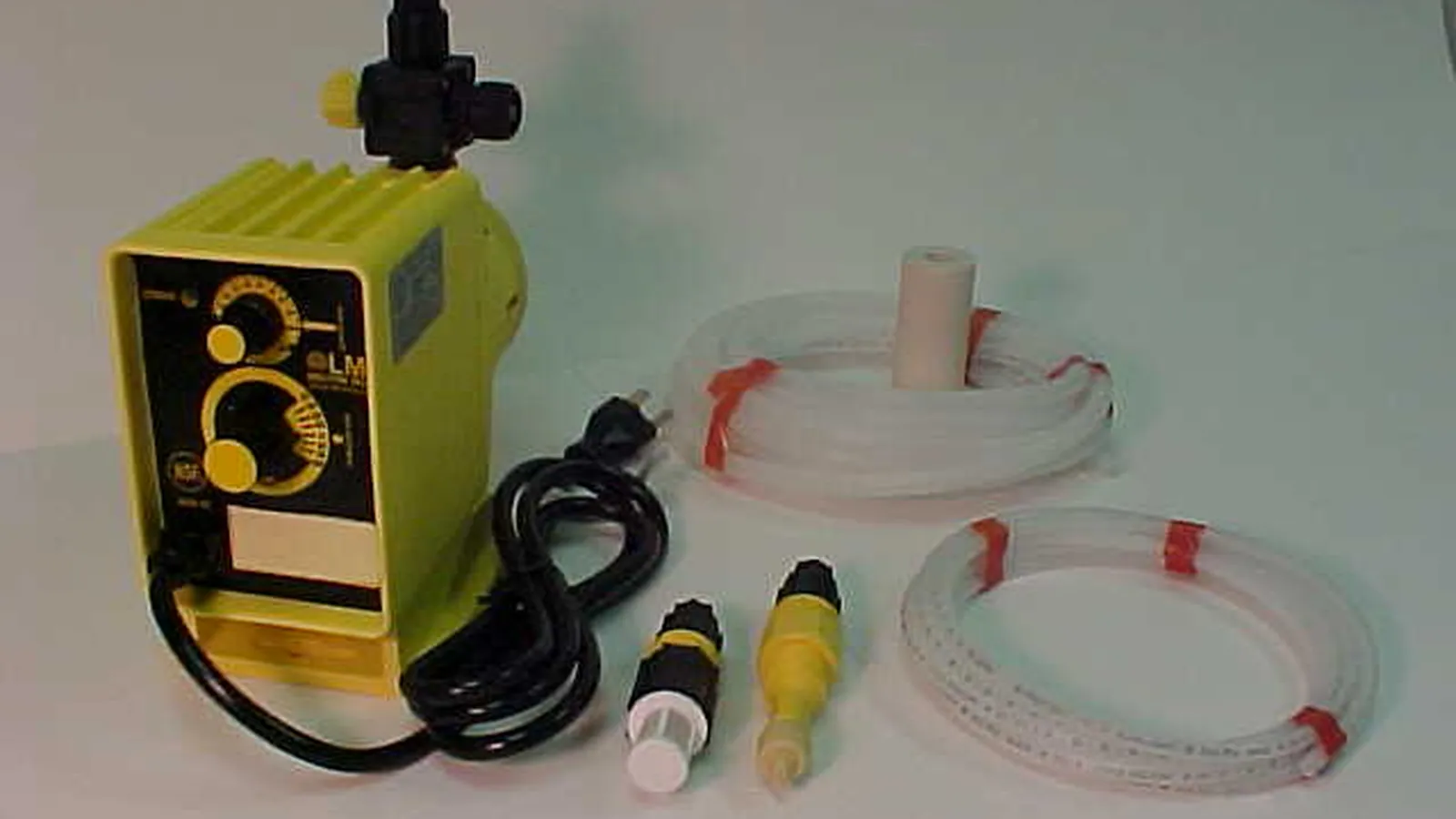

How to Run a Calibration Test (10 Minutes)
- Prime the pump fully and let it run at your normal dose setting for two minutes.
- Close the tank valve so the pump draws from the calibration pot only.
- Note the starting level on the graduations.
- Run for exactly one minute (or a measured two minutes for very low outputs).
- Read the ending level and subtract — that is the actual output in mL/min.
- Compare against the setpoint. If the pump is set for 120 mL/min but delivers 96, it is running at 80%.
- Adjust stroke length (or speed) to bring output back to setpoint, then re-run the test to confirm.
- Open the tank valve and return the pump to normal suction.
Record the result in your maintenance log. Trending these numbers over months tells you exactly when a diaphragm or valve cartridge is heading for failure — before the pump stops entirely.
Choosing the Right Calibration Pot
| Pump output | Pot size | Why |
|---|---|---|
| Under 30 mL/min | 0.5 L | Small graduation resolution |
| 30–120 mL/min | 1 L | Covers a one-minute test |
| 120–500 mL/min | 2 L | Longer test window, less reading error |
| Over 500 mL/min | 5 L | Avoids emptying the pot mid-test |
Other specs to check:
- Material: acrylic for most chemicals; PVC or PTFE-lined for aggressive oxidizers. Match the pot to the chemical, not the pump.
- Fittings: standard suction tube sizes (6–10 mm) cover most solenoid pumps. Motor-driven pumps may need 12–16 mm connections.
- Graduation scale: milliliter graduations for low-output pumps, 10 mL for high-output duty.
- Valve quality: the isolation valve is the part that fails. A cheap valve that leaks in calibration mode makes the reading meaningless.
Common Calibration Mistakes
- Testing against a pressurized line: the pump output changes with discharge pressure. Calibrate at the same back-pressure as normal operation.
- Reading before the pump settles: let the pump run at least two minutes after any adjustment before you time the test.
- Ignoring vapor bubbles: if you see bubbles in the pot or line, the reading is wrong. Re-prime and re-test.
- Calibrating with the wrong chemical: viscosity changes output. Calibrate with the actual chemical, not water, if the chemical is notably thicker than water.
- Only calibrating after a failure: run the ten-minute test monthly. It is cheap insurance and it builds the maintenance log that predicts failures.
Calibration Pot vs. Other Accuracy Checks
| Method | Cost | Accuracy | Best for |
|---|---|---|---|
| Calibration pot | Low | ±2–5% | Routine monthly checks |
| Weighing method (scale + container) | Medium | ±1% | Lab-grade verification |
| Magnetic flow meter | High | ±0.5% | Continuous monitoring |
| Pump counter / stroke counter | Low | Coarse | Run-time tracking only |
For most treatment plants, a calibration pot is the right tool: accurate enough for process control, cheap enough to keep one per pump, and simple enough that operators actually use it.
FAQ
Q: Do I need a calibration pot if my pump has a built-in stroke counter?A: Yes. A stroke counter tells you the pump is cycling, not that it is delivering the right volume. Stroke length drifts; the pot catches the drift.
Q: Can I calibrate with water instead of the real chemical?A: For a quick check, yes. For the number you log, use the real chemical — viscosity and temperature change output.
Q: How often should I calibrate?A: Monthly for continuous duty. Weekly if you dose critical chemicals (biocides, corrosion inhibitors) or if you have recently changed stroke settings.
Q: My pot is acrylic and I dose sodium hypochlorite. Is that okay?A: Acrylic has limited resistance to strong oxidizers. Use PVC or PTFE-lined for hypochlorite service, and flush the pot after each calibration.
